Felt line acoustic slats


Specify product selection
Light Grey 9 a 12 mm Silver Grey 9 a 12 mm Antracit 9 a 12 mm Black 17 White 06 Ash Grey 18 Lime Green 37 Green 04 Orange 05 Light Yellow 20 Violet 23 Dark Blue 08 Blue 03 Sky Blue 22 Aqua Grey 14 Light Camel 07 Deep Camel 10 Longan Yellow 11 Ferruginous 09 Maroon 15 Pure Red 25 Red 21 Deep Orange 19 turquoise 31 Pink 33
Produced to order

Folded lamella made of PET panel intended for application for the treatment of ceilings and walls. The main advantage is simple application, acoustic efficiency and lamella appearance of walls and ceilings. Fully adjustable in slat sizes and colors. More

Product Description

Felt Line Slats are folded felt slats of various sizes and colors designed for both ceiling and wall applications. Unlike Silencio slats, they have the same appearance on both sides and edges. They offer a wide selection of colors and dimensions. The base thickness of the slats is 9mm, which can be stacked to a thickness of 40mm or more. See the table for slat dimensions.

They are suitable for office communities, shops, and restaurants—only limited by your imagination. Felt Line slats are designed to reduce noise levels and are a stylish design solution for any interior.

Product Features

Category / Material

Lamella / PET panel
Surface Finish Color according to the swatch book
Sound Absorption alpha w = 1 from spacing
Fire Rating B s1, d0
Standard Slat Dimensions 40 x 40, 100, 150, 200 mm length 2400mm other dimensions on request
Mechanical Resistance Felt Line slats have excellent mechanical resistance but do not withstand heavy force.

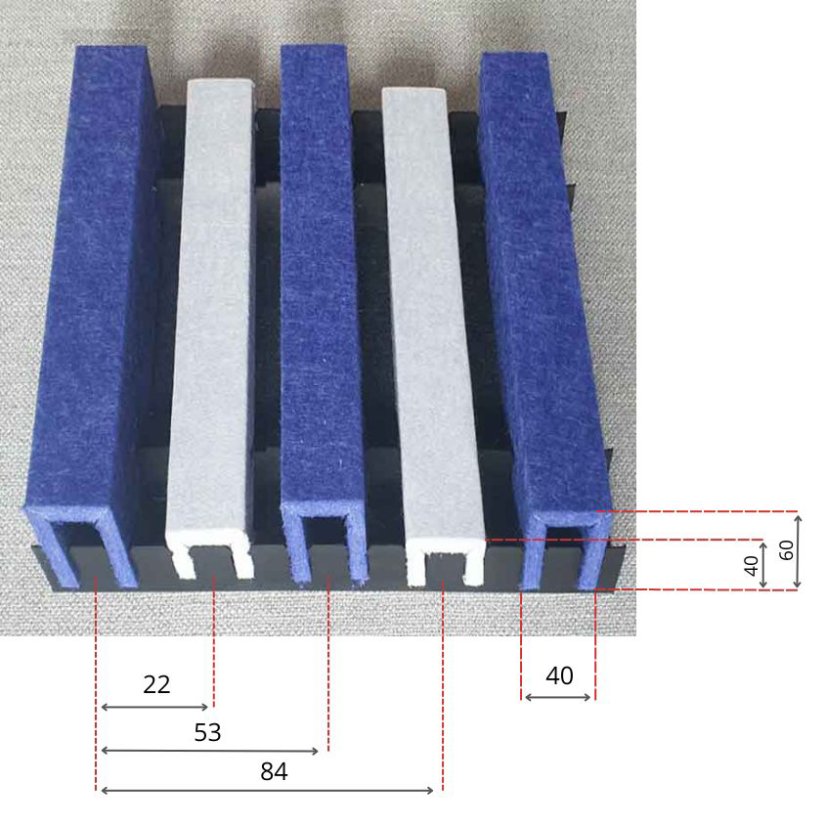

Product Dimensions

Slat width mm Slat height mm Slat length mm Spacing between slats mm Surface Finish
40, 60 30 - 200 max. 2400mm 22 color swatch

Other dimensions and spacings available upon request

Acoustic Properties

Application/slat dimension Spacing Thickness αw / NRC
Ceiling / 40 x 40 20mm spacing 250mm 1 / 0.95

Installation

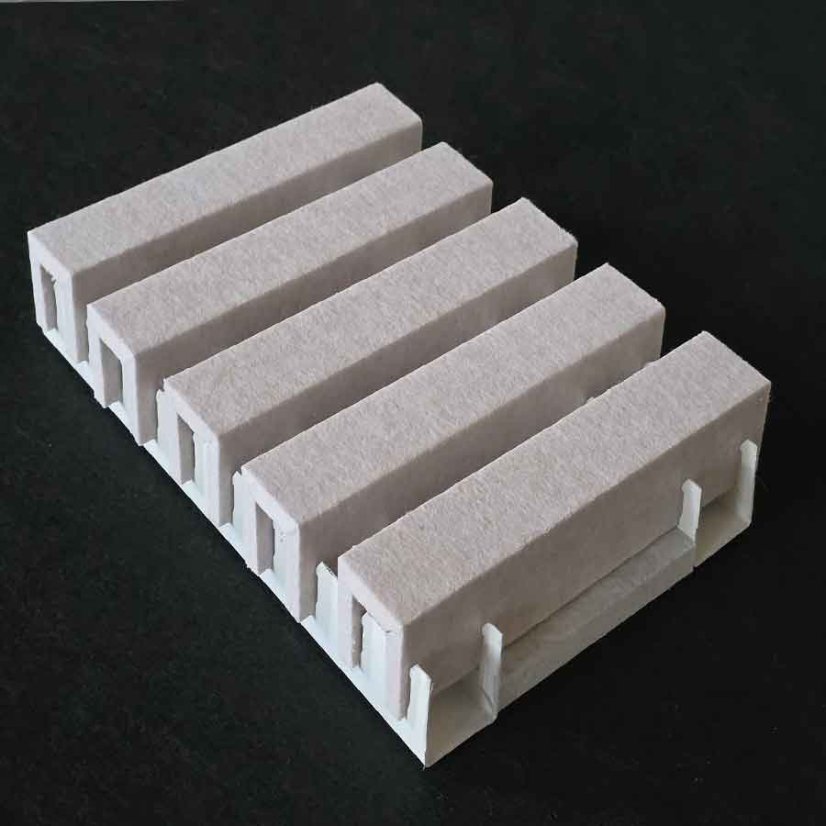

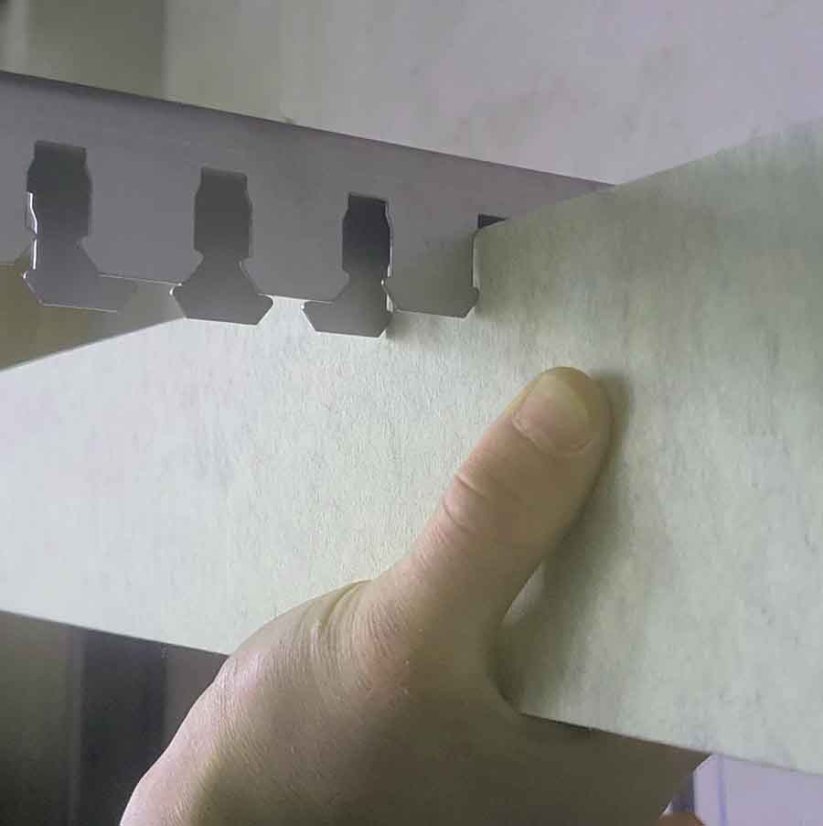

Slats are mounted into metal U ridges with slots for inserting slats. The ridges are suspended from the ceiling at the desired height. When applied to the wall, U profiles are fixed to the wall. Slats are removable after installation. Longer strips are created by joining slats with connectors at the ends. Ridges can also be in black.



Variant  Ekosound označenie B  /PET vlákno/
Horľavosť - Reakcia na oheň
Panely Ekosound sú z PET vlákna.
Horľavosť: Ekosound v hrúbke 5-50mm a plošnej hmotnosti do 2500g/m2  je zaradený podľa STN EN 13501-1 do skupiny B S1,d0  ako neľahko horľavý.
Odolnosť voči vlhku
Vláknitý panel EKOSOUND je vhodný aj do  vlhkého prostredia do 60% vlhkosti pri odvetrávanom priestore  a zabránenie kondenzácie vodných pár.
Mechanické vlastnosti
Panely EKOSOUND  sú pružné a odolávajú mechanickému poškodeniu aj hrubej sile okrem znečistenia povrchu .
Hygiena  a čistenie panelov

Panely Ekosound vynikajú ekologickou nezávadnosťou. V prevedení Natural je bez akejkoľvek chemickej prísady. Vhodné pre detské zariadenia a zdravotnícke priestory. Čistenie mäkkým kefou alebo vysávačom.
Upozornenie!
  Pri aplikácii panelov Natural v bielej alebo čiernej farbe sa musia používať rukavice, pretože povrch panelov je citlivý na znečistené ruky.

Hmotnosť panelov
2500g/m2 pri hrúbke 40mm.

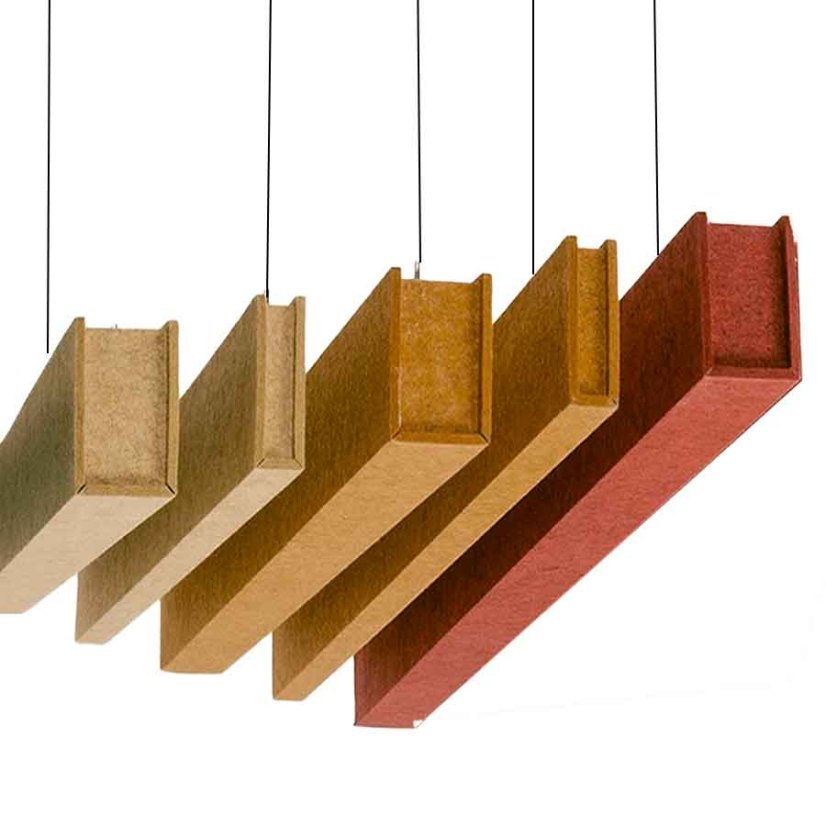

Hanging from the ceiling Zavesené na stojato
Surface Felt
Element thickness 9mm
Element shape Slat, Suspended ceiling panels
Core material Recyklovaný PET panel
Surface treatment PET panel Farba
A problem Noise/echo in the room
Location on: The ceiling
Designed for: Schools, kindergartens, Offices, Social spaces
